Editable props (fframes Studio)

fframes Studio can change a component’s props without code edits. In the Props panel, select the component on the canvas, change a value, and the preview updates. The values are saved in the project’s props.json.

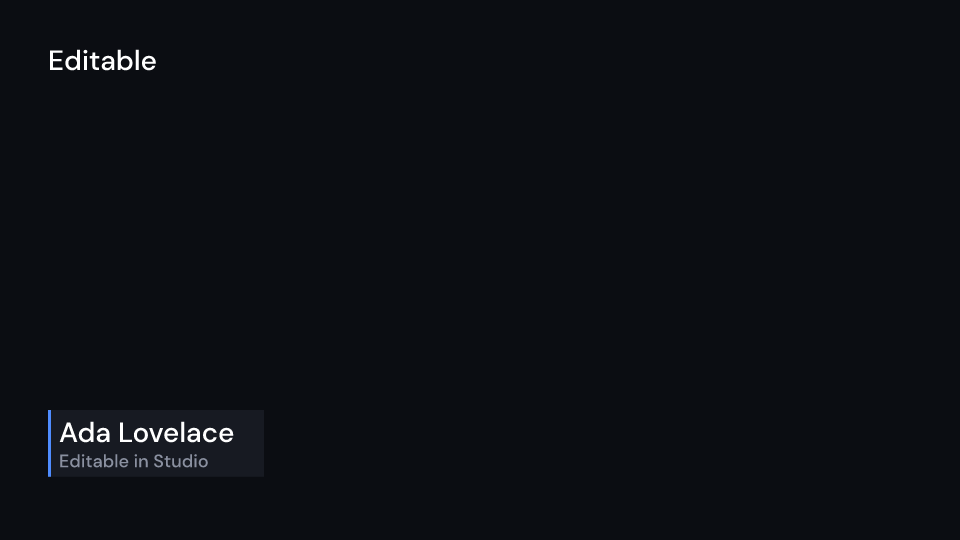

Gallery scene: Editable. Without a props source, it shows the component’s original values.

Editable 2 sPlayUnmuteCopy render command

A component is editable when it has a key:

• in the struct form, ui.show(LowerThird { .. }.editable("speaker"));
• in a tag, <LowerThird editable="speaker" .. />.

Keys must be unique within a scene.

• Without the kit feature studio, editable renders the component unchanged. Code that marks components therefore builds the same everywhere.
• With studio, every kit component implements Props. Its editable fields are numbers, bool, text, Color, Option<Color> (null is none) and a fixed Anim<f32>.
  • Children, slices, keyframes and styles stay in code.
  • Your own components get it with #[derive(Props)]. Use #[props(skip)] to keep a field out, and #[props(min = 0.0, max = 100.0, step = 1.0, unit = "px")] to bound a number.
  • Enums whose variants have no fields get it with #[derive(PropChoice)].

The Ui takes its values from a PropsSource, set with Ui::with_props:

use fframes_kit::prelude::*;

fn title<'a>(frame: Frame, ctx: &FFramesContext<'a, '_>, theme: &'a Theme) -> Svgr<'a> {
    let mut ui = Ui::new(frame, ctx, theme);
    ui.show(
        LowerThird {
            name: "Ada".into(),
            ..ui.defaults()
        }
        .editable("speaker"),
    )
}

fn with_source<'a>(
    frame: Frame,
    ctx: &FFramesContext<'a, '_>,
    theme: &'a Theme,
    source: impl PropsSource + 'a,
) -> Svgr<'a> {
    let mut ui = Ui::new(frame, ctx, theme).with_props(source);
    ui!(<LowerThird editable="speaker" name="Ada" />)
}

When the component renders with a source:

• the source’s values for it replace the code’s values (PropsSource::values);
• it is drawn inside a <g> with the id the source gives (PropsSource::element_id);
• while the source listens, it hears the schema, the code’s values and the drawn values (PropsSource::rendered);
• a value that does not fit its field is skipped with a warning in inspect.

The source is made per Ui, so it can hold one snapshot of the values; the Uis of containers share it.

With fframes Studio

The kit does not depend on Studio. Studio’s source is the PropsStore of the fframes-studio-kit crate in the fframes Studio repository. It holds the project’s props.json, names each object with Studio’s editor identity (the scene’s editor_instance_key, else its name; video outside scenes; the type name; the key; main), and answers the props panel:

Not compiled

use fframes_studio_kit::PropsStore;

// render_frame of a video, and of a scene
let mut ui = Ui::new(frame, ctx, &self.theme).with_props(self.props.view());
let mut ui = Ui::for_scene(frame, ctx, theme, self).with_props(props.scene_view(self));

// the project's Studio worker
let props = Arc::new(PropsStore::load("props.json")?); // exports read the same document
props.listen(); // record each editable object's schema and values for the panel
let config = config.with_props_args(&args).with_props(props.hooks());
// export: run_export_with_props(&video, &options, &args, &props.hooks())
// export capabilities: print_export_capabilities_with_props::<MyVideo>()

API

Editable

A component with an editor key, see the module docs.

Field	Type	Default	Description
key	Cow<str>	—	The key the editor stores this component’s values under.
component	C	—	The component whose props the key makes editable.

It has no theme defaults: build it with Editable::new(..).

Methods:

• fn new(key: impl Into<Cow<str>>, component: C) -> Self
