RadialWave

Cargo featurefeatures = ["physics"]

View Markdown Open in Claude Open in ChatGPT

Circular waves from every point of sources, amplitude sin(k r - ω t) each, summed where they meet. In 2D the crests are rings and the troughs dashed rings, clipped to x_range by y_range; where the rings of two sources cross, the waves add up. With front (the default) the rings leave the sources on the figure’s clock. displacement(x, y, t) gives the height. With the 3d feature the same wave goes into a ThreeDView as a surface (resolution pieces a side, amplitude high); only enter applies there. Gallery scenes: RadialWave, and RadialWave3D with the gallery’s three-d feature (on by default).

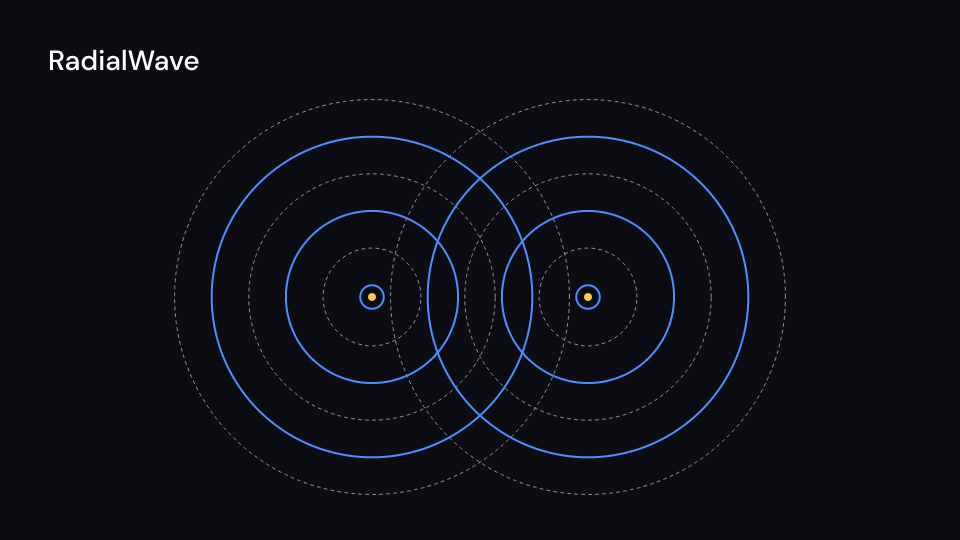

RadialWave demo, first frame — `RadialWave` 4 s

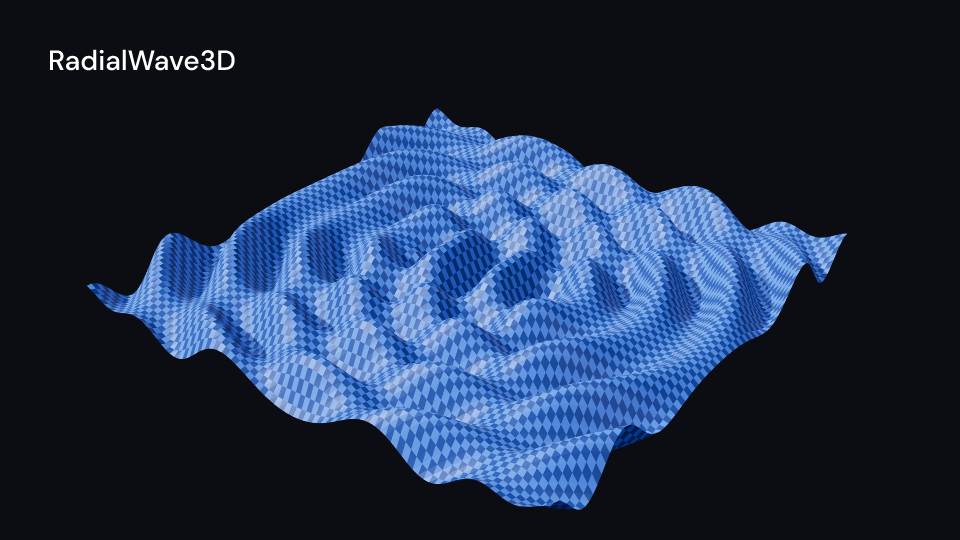

RadialWave3D demo, first frame — `RadialWave3D` 2.5 s

use fframes_kit::prelude::*;

fn figure<'a>(ui: &mut Ui<'a, '_, '_>) -> Svgr<'a> {
    ui.show(RadialWave {
        sources: vec![(-1.6, 0.0), (1.6, 0.0)],
        wavelength: 1.1,
        speed: 1.6,
        x_range: (-7.0, 7.0),
        y_range: (-4.0, 4.0),
        ..ui.defaults()
    })
}

API

Components are plain structs. Set the fields you need and fill the rest with ..ui.defaults(): the defaults below come from the current theme (theme. values are fields of Theme).

RadialWave

Field	Type	Default	Description
`sources`	`Vec<(f64, f64)>`	`vec![(0.0, 0.0)]`	The points the waves spread from, in units of `ui.space`.
`wavelength`	`f64`	`1.0`	Units of `ui.space` between two crests.
`speed`	`f64`	`1.0`	Speed of the rings in units of `ui.space` per second.
`amplitude`	`f64`	`0.3`	Largest height of one wave in units of `ui.space`; it sets the height of the 3D surface.
`front`	`bool`	`true`	The water is at rest at the start and the rings leave the sources on the clock; off fills the area from the start.
`x_range`	`(f64, f64)`	`(-7.0, 7.0)`	Left and right edges of the area the rings are drawn in, in units of `ui.space`.
`y_range`	`(f64, f64)`	`(-4.0, 4.0)`	Bottom and top edges of the area the rings are drawn in, in units of `ui.space`.
`troughs`	`bool`	`true`	Draws the troughs as dashed rings, a quarter wavelength from the crests.
`show_sources`	`bool`	`true`	Draws a dot at each source.
`resolution`	`usize`	`96`	Pieces along each side of the 3D surface; ignored in 2D.
`delay`	`f32`	`0.0`	Seconds after the container’s start before the waves begin.
`time_scale`	`f32`	`1.0`	Speed of the motion over local time; 2 runs twice as fast, 1 is real time.
`color`	`Color`	`theme.colors.accent`	Colour of the crest rings.
`trough_color`	`Color`	`theme.colors.muted`	Colour of the trough rings.
`source_color`	`Color`	`theme.colors.highlight`	Colour of the source dots.
`stroke_width`	`f32`	`theme.stroke.regular`	Width of the crest rings in pixels; troughs use the theme’s thin width.
`enter`	`Option<FadeIn>`	`None`	Fade in at the start; `None` for none.
`exit`	`Option<FadeOut>`	`None`	Fade out before the end; `None` for none.

Methods:

fn displacement(&self, x: f64, y: f64, t: f64) -> f64: The height of the water at (x, y) after t seconds: the sum over the sources of amplitude sin(k r - ω t), without the sources the front has not reached yet.

Feature physics · Source
