PhyloTree

PhyloTree reads a tree in Newick format (Newick::parse, which says where a malformed string goes wrong) and grows it from the root at the left, width pixels from the root to the leaves and row pixels between leaves:

• Scale: when every branch has a length the tree is drawn to scale; otherwise it is a cladogram, with the leaves in one column.
• Growth: from delay the branches draw outward one level every step seconds, and each leaf’s name appears as its branch arrives.
• Traits: named inner nodes are traits shared by everything after them, marked on the branch that leads to them ((Mouse,Human)hair).
• Highlight: highlight names a node whose clade turns highlight_color at highlight_at.

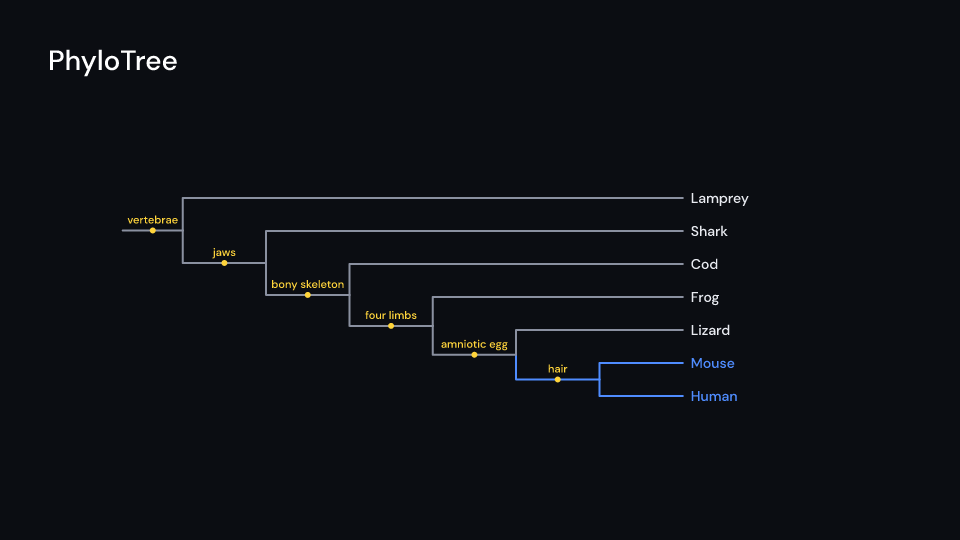

Names with spaces are quoted ('four limbs') or written with _. Gallery scene: PhyloTree (vertebrates, then the mammals).

PhyloTree 7 sPlayUnmuteCopy render command

use fframes_kit::prelude::*;
use fframes_kit::kits::biology::Newick;

let tree = Newick::parse("((Cat:1,Dog:1):2,Fish:3)root;").unwrap();
assert_eq!(tree.leaves(), ["Cat", "Dog", "Fish"]);
assert!(Newick::parse("((Cat,Dog)").is_err());

fn pets<'a>(ui: &mut Ui<'a, '_, '_>) -> Svgr<'a> {
    ui.show(PhyloTree {
        newick: "((Cat:1,Dog:1)mammals:2,Fish:3);".into(),
        highlight: Some("mammals".into()),
        highlight_at: 3.0,
        ..ui.defaults()
    })
}

API

Components are plain structs. Set the fields you need and fill the rest with ..ui.defaults(): the defaults below come from the current theme (theme. values are fields of Theme).

PhyloTree

Field	Type	Default	Description
newick	String	—	The tree in Newick notation, e.g. ((a:1,b:1)c:2,d:3);; branch lengths are optional.
delay	f32	0.0	Seconds after the container’s start before the first branches draw.
step	f32	0.55	Seconds each level of branches takes to draw outward.
center	(f64, f64)	(-0.7, -0.4)	The middle of the tree, in units of ui.space.
width	f32	1000.0	Pixels from the root to the leaves.
row	f32	66.0	Pixels between neighbouring leaves.
highlight	Option<String>	None	Name of a node whose clade is highlighted; None for none.
highlight_at	f32	0.0	Seconds after delay when the highlighted clade starts to turn highlight_color.
branch_color	Color	theme.colors.muted	Colour of the branches.
highlight_color	Color	theme.colors.accent	Colour the highlighted clade turns.
trait_color	Color	Color::hex("#ffd43b")	Colour of the trait marks and names on the branches.
name_style	TextStyle	theme.typography.caption	The font of the leaf names: family, size in pixels and weight.
trait_style	TextStyle	trait_style	The font of the trait names: family, size in pixels and weight.
text_color	Color	theme.colors.text	Colour of the leaf names.
enter	Option<FadeIn>	None	Fade in at the start; None for none.
exit	Option<FadeOut>	None	Fade out before the end; None for none.

Feature biology · Source
