Circuit

Cargo featurefeatures = ["physics"]

View Markdown Open in Claude Open in ChatGPT

A series circuit on a rectangular loop: a battery on the left side, a switch on the top, a bulb on the right and a resistor on the bottom. Turn a part off (switch: false, ..) and the wire runs on. The switch closes at on_at seconds. Then the current flows as dots out of the battery’s long plate, clockwise, and the bulb glows. A label left empty is not drawn. Gallery scene: Circuit.

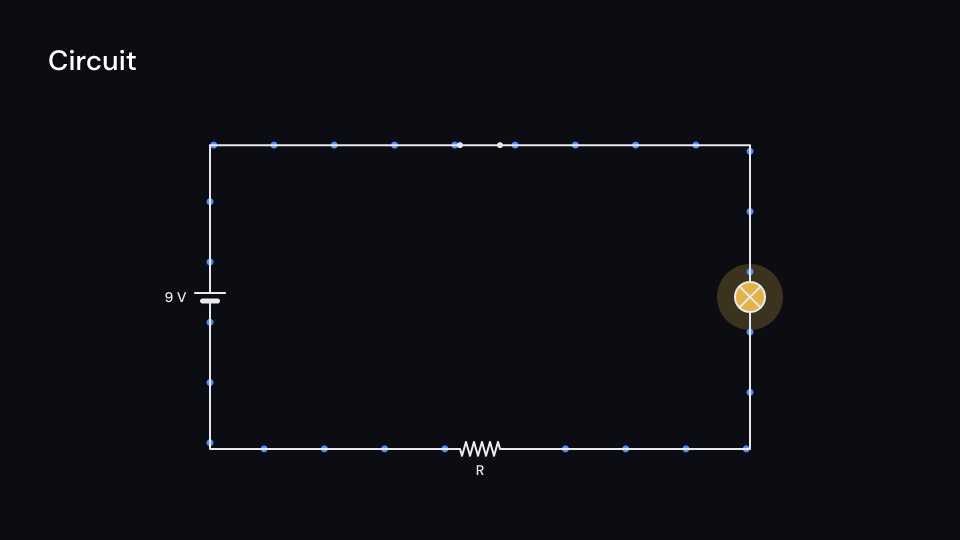

Circuit demo, first frame — `Circuit` 5 s

use fframes_kit::prelude::*;

fn figure<'a>(ui: &mut Ui<'a, '_, '_>) -> Svgr<'a> {
    ui.show(Circuit {
        center: (0.0, -0.4),
        width: 8.0,
        height: 4.5,
        on_at: 1.4,
        battery_label: "9 V",
        enter: Some(Create::default().into()),
        ..ui.defaults()
    })
}

API

Components are plain structs. Set the fields you need and fill the rest with ..ui.defaults(): the defaults below come from the current theme (theme. values are fields of Theme).

Circuit

Field	Type	Default	Description
`center`	`(f64, f64)`	`(0.0, 0.0)`	The middle of the loop, in units of `ui.space`.
`width`	`f64`	`8.0`	Width of the loop in units of `ui.space`.
`height`	`f64`	`4.5`	Height of the loop in units of `ui.space`.
`battery`	`bool`	`true`	Draws the battery on the left side; off leaves the wire running on.
`switch`	`bool`	`true`	Draws the switch on the top side; off leaves the wire running on and the current starts at `on_at`.
`bulb`	`bool`	`true`	Draws the bulb on the right side; off leaves the wire running on.
`resistor`	`bool`	`true`	Draws the resistor on the bottom side; off leaves the wire running on.
`on_at`	`f32`	`1.0`	Seconds after the local start when the switch begins to close and the current starts.
`current_speed`	`f32`	`160.0`	Speed of the current dots along the wire, in pixels per second.
`dots`	`usize`	`28`	Number of dots that make up the current, spread evenly around the loop.
`battery_label`	`&str`	`"9 V"`	Text beside the battery; empty for none.
`switch_label`	`&str`	`""`	Text above the switch; empty for none.
`bulb_label`	`&str`	`""`	Text beside the bulb; empty for none.
`resistor_label`	`&str`	`"R"`	Text below the resistor; empty for none.
`wire_color`	`Color`	`theme.colors.text`	Colour of the wire and the parts.
`dot_color`	`Color`	`theme.colors.accent`	Colour of the current dots.
`glow_color`	`Color`	`theme.colors.highlight`	Colour of the bulb’s glow once current flows.
`label_color`	`Color`	`theme.colors.text`	Colour of the labels.
`stroke_width`	`f32`	`theme.stroke.regular`	Wire width in pixels; the battery’s short plate is 2.5 times as thick.
`enter`	`Option<EnterAnim>`	`None`	How the wire and the parts draw in; `None` shows them from the start.
`exit`	`Option<ExitAnim>`	`None`	How the wire and the parts leave at the end of the container; `None` stays.
`parts_enter`	`Option<FadeIn>`	`None`	How the labels, dots and glow fade in; `None` for none.
`parts_exit`	`Option<FadeOut>`	`None`	How the labels, dots and glow fade out before the end; `None` for none.

Methods:

fn lever_angle(&self, now: f32) -> f64: The angle of the switch’s lever, from open (35°) to closed (0).
fn flowing(&self, now: f32) -> f32: Seconds the current has flowed at now seconds of local time, 0 before it starts.

Feature physics · Source
