The computer science kit is the cs feature of fframes-kit
(fframes-kit = { .., features = ["cs"] }). It brings one crate,

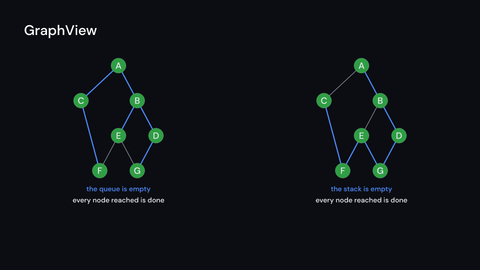

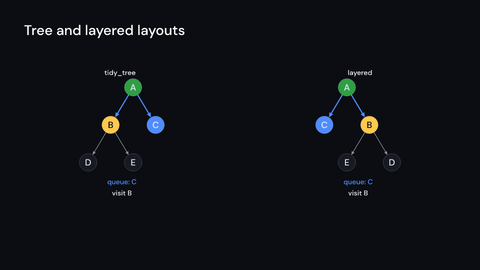

rust-sugiyama, for the layered graph layout of
layout::layered. It builds for wasm32, so every figure here also runs in the editor. Every

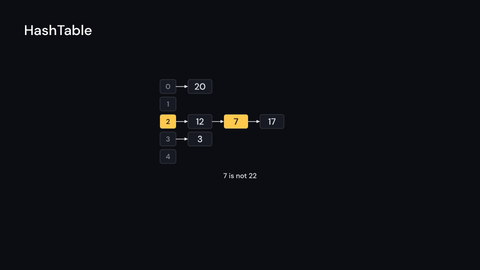

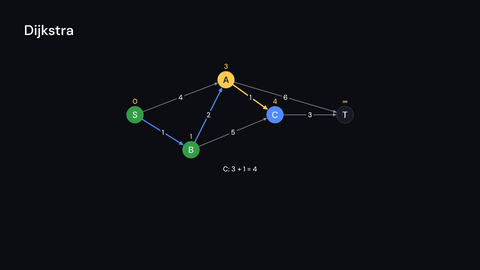

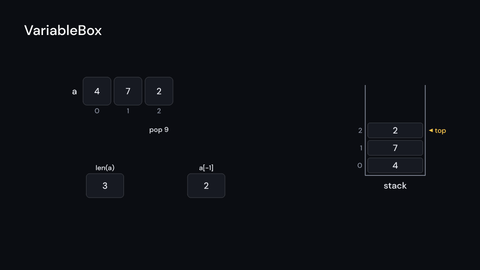

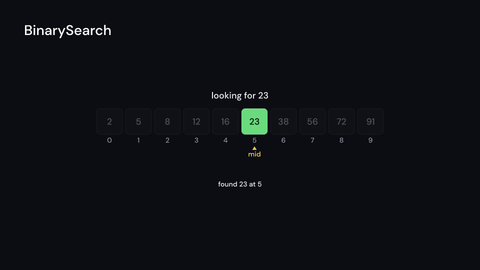

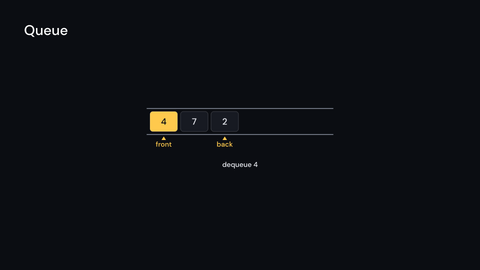

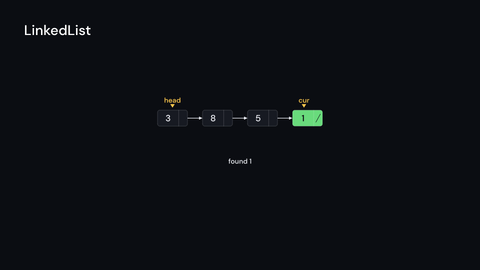

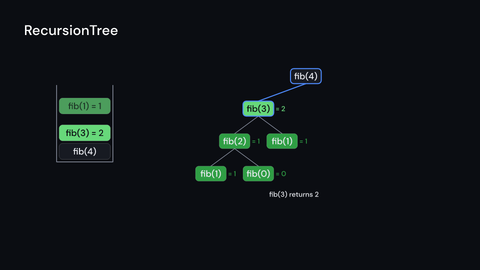

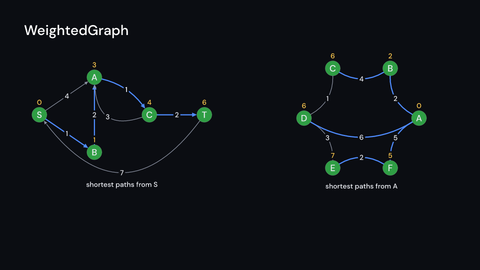

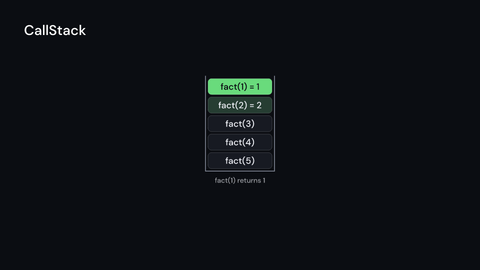

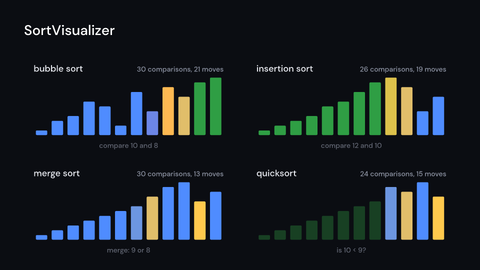

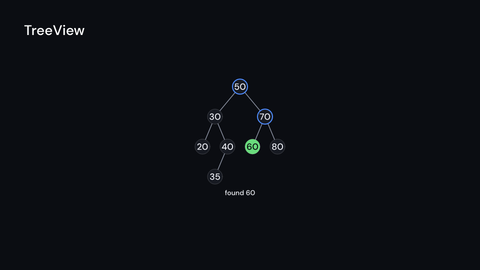

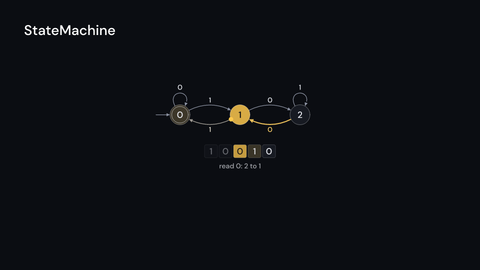

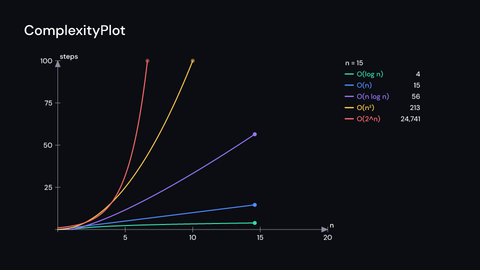

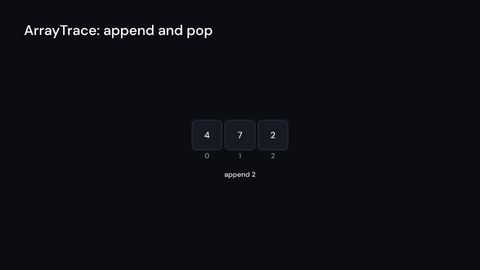

entry names its scene in the components gallery
(cargo run --release -p components-gallery -- strip <Scene> -n 8).
- Recorded once. An algorithm runs once, in a constructor or a
OnceLock, and records its steps. The figures sample the steps by time (delay, then one step everystep_timeseconds), so nothing runs again per frame, and every frame is a pure function of the steps. - Placement. A figure is placed in units of
ui.space(Manim’s frame: 8 units tall,yup, the origin in the middle). Its sizes are in pixels: cell sizes, gaps, bar areas. - No jumps. A change of state blends over a fraction of the step: colours, the dimming of cells out of range, pointers sliding to their next cell and notes fading from one to the next.
