LinkedList, Stack and Queue

Cargo featurefeatures = ["cs"]

View Markdown Open in Claude Open in ChatGPT

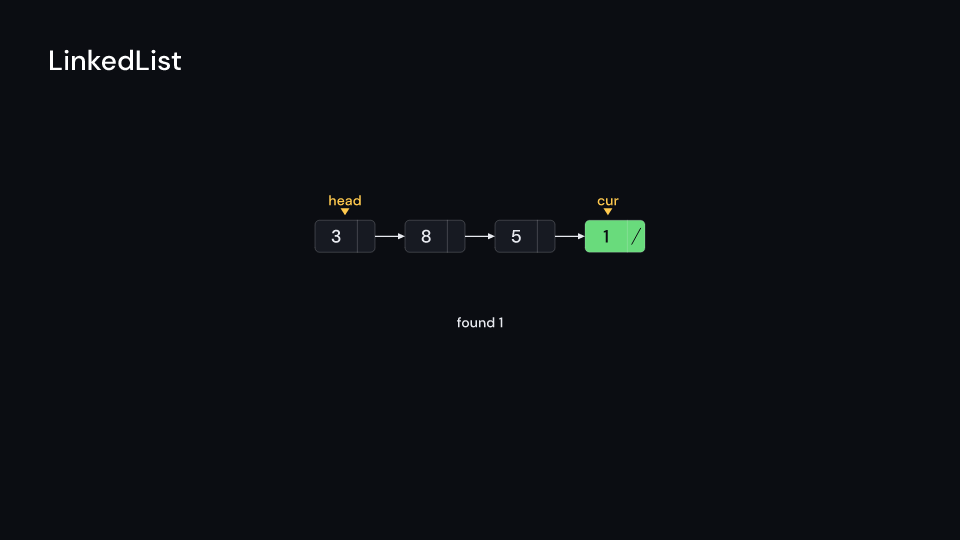

LinkedList draws a ListTrace as boxes with a value and a link cell, node by height pixels and gap apart. Links are arrows from the link cell to the next node; a link back to a node on the left dips under the nodes, and a node without a link shows a slash. New nodes drop in, removed ones drop out, and nodes that pass each other (when a reversed list takes its new order) swing apart. The pointers, with head on the first node, sit above the nodes. Gallery scene: LinkedList (an insert, a find, a remove and a reversal).

LinkedList demo, first frame — `LinkedList` 12.5 s

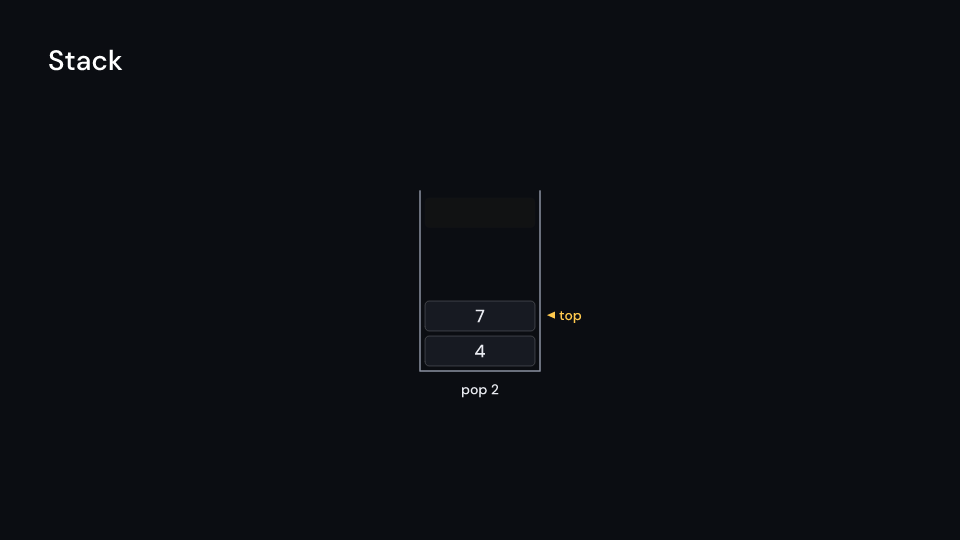

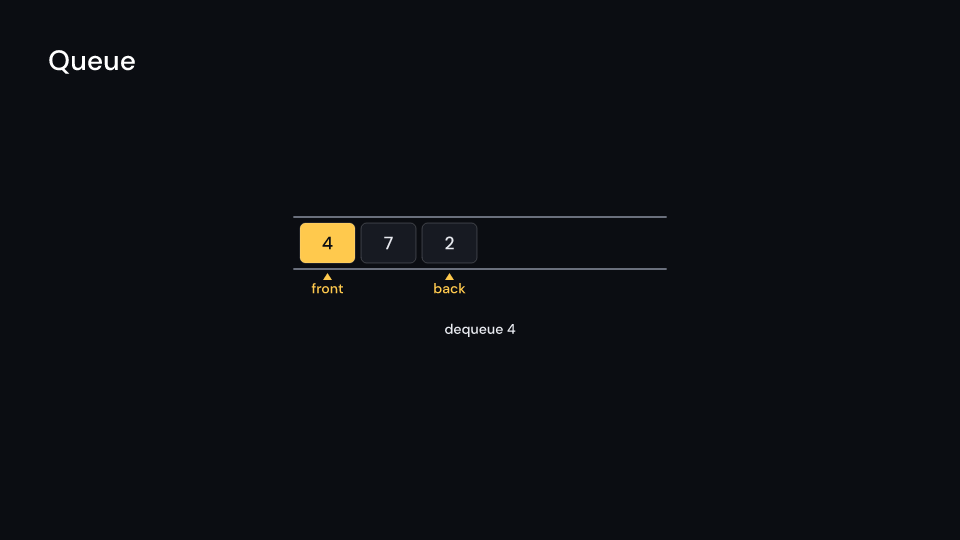

Stack piles the items up in a container capacity boxes tall, the last item on top with a top marker; pushed boxes drop in, popped ones rise out. Queue lines the items up in a channel capacity boxes long, the front at the left, with front and back markers; enqueued boxes slide in from the right and dequeued ones leave to the left. A Stack with indices writes each box’s index left of the container, 0 at the bottom, and label names it under the container. Gallery scenes: Stack and Queue. The VariableBox scene also shows a stack with indices and a label.

Build the trace once and pass it to either view:

use fframes_kit::prelude::*;

fn list<'a>(ui: &mut Ui<'a, '_, '_>, trace: &'a ListTrace) -> Svgr<'a> {
    ui.show(LinkedList { trace: Some(trace), step_time: 0.75, ..ui.defaults() })
}

fn stack<'a>(ui: &mut Ui<'a, '_, '_>, trace: &'a ListTrace) -> Svgr<'a> {
    ui.show(Stack { trace: Some(trace), step_time: 0.75, ..ui.defaults() })
}

use fframes_kit::prelude::*;

fn queue<'a>(ui: &mut Ui<'a, '_, '_>, trace: &'a ListTrace) -> Svgr<'a> {
    // trace = ListTrace::record(&[4]).enqueue(7).dequeue().finish(), built once
    ui.show(Queue {
        trace: Some(trace),
        delay: 0.5,
        step_time: 0.7,
        capacity: 5,
        ..ui.defaults()
    })
}

API

Components are plain structs. Set the fields you need and fill the rest with ..ui.defaults(): the defaults below come from the current theme (theme. values are fields of Theme).

LinkedList

A linked list: each node a box with its value and a link cell, node by height pixels and gap apart, centred on center (units of ui.space). Links are arrows from the link cell to the next node; a link that points back to a node on the left dips under the nodes, and a node without a link shows a slash. It plays a ListTrace, one step every step_time seconds from delay: nodes slide to their places, new ones drop in, removed ones drop out, links fade as they change, and the pointers (cur, and head with head) sit above the nodes. The whole figure fades with enter and exit.

Field	Type	Default	Description
`trace`	`Option<&ListTrace>`	`None`	The recorded steps to play (`ListTrace`); `None` draws nothing.
`delay`	`f32`	`0.0`	Seconds after the container’s start before the first step.
`step_time`	`f32`	`0.8`	Seconds each step of the trace takes.
`center`	`(f64, f64)`	`(0.0, 0.0)`	The middle of the list, in units of `ui.space`.
`node`	`f32`	`120.0`	Width of a node in pixels.
`height`	`f32`	`64.0`	Height of a node in pixels.
`gap`	`f32`	`60.0`	Space between neighbouring nodes in pixels, where the link arrows run.
`head`	`bool`	`true`	Whether the `head` pointer is shown above the first node.
`notes`	`bool`	`true`	Whether the step’s note is written under the list.
`colors`	`CellColors`	`CellColors::themed(theme)`	Colours of the nodes in each state (visited, moved, found).
`link_color`	`Color`	`theme.colors.text`	Colour of the link arrows and the slash of a node without a link.
`pointer_color`	`Color`	`theme.colors.highlight`	Colour of the pointer names (`cur`, `head`) above the nodes.
`value_style`	`TextStyle`	`value_style`	The font of the values in the nodes.
`small_style`	`TextStyle`	`theme.typography.caption`	The font of the pointer names and notes.
`enter`	`Option<FadeIn>`	`None`	Fade in at the start; `None` for none.
`exit`	`Option<FadeOut>`	`None`	Fade out before the end; `None` for none.

Feature cs · Source

Stack

A stack: boxes width by height pixels piled up from the bottom of a container that holds capacity of them, centred on center (units of ui.space), with a top marker beside the top box. It plays a ListTrace (the last item is the top), one step every step_time seconds from delay: pushed boxes drop in from above, popped ones rise out. With indices (manim-dsa’s add_indexes) each box has its index left of the container, 0 at the bottom, and label (add_label, empty for none) is written under it. The whole figure fades with enter and exit.

Field	Type	Default	Description
`trace`	`Option<&ListTrace>`	`None`	The recorded steps to play (`ListTrace`, the last item is the top); `None` draws nothing.
`delay`	`f32`	`0.0`	Seconds after the container’s start before the first step.
`step_time`	`f32`	`0.7`	Seconds each step of the trace takes.
`center`	`(f64, f64)`	`(0.0, 0.0)`	The middle of the container, in units of `ui.space`.
`width`	`f32`	`220.0`	Width of a box in pixels.
`height`	`f32`	`60.0`	Height of a box in pixels.
`gap`	`f32`	`10.0`	Space between neighbouring boxes in pixels.
`capacity`	`usize`	`5`	How many boxes the container holds; sets its height.
`indices`	`bool`	`false`	Whether each box has its index left of the container, 0 at the bottom.
`label`	`&str`	`""`	Text written under the container; empty for none.
`notes`	`bool`	`true`	Whether the step’s note is written under the stack.
`colors`	`CellColors`	`CellColors::themed(theme)`	Colours of the boxes in each state (visited, moved, found).
`frame_color`	`Color`	`theme.colors.muted`	Colour of the container’s outline.
`marker_color`	`Color`	`theme.colors.highlight`	Colour of the `top` marker.
`index_color`	`Color`	`theme.colors.muted`	Colour of the indices.
`label_color`	`Color`	`theme.colors.text`	Colour of the label under the container.
`value_style`	`TextStyle`	`value_style`	The font of the values in the boxes.
`small_style`	`TextStyle`	`theme.typography.caption`	The font of the marker, indices and notes.
`enter`	`Option<FadeIn>`	`None`	Fade in at the start; `None` for none.
`exit`	`Option<FadeOut>`	`None`	Fade out before the end; `None` for none.

Feature cs · Source

Queue

A queue: boxes width by height pixels in a channel capacity boxes long, centred on center (units of ui.space), the front at the left, with front and back markers under the boxes. It plays a ListTrace (the first item is the front), one step every step_time seconds from delay: enqueued boxes slide in from the right, dequeued ones leave to the left and the rest move up. The whole figure fades with enter and exit.

Field	Type	Default	Description
`trace`	`Option<&ListTrace>`	`None`	The recorded steps to play (`ListTrace`, the first item is the front); `None` draws nothing.
`delay`	`f32`	`0.0`	Seconds after the container’s start before the first step.
`step_time`	`f32`	`0.7`	Seconds each step of the trace takes.
`center`	`(f64, f64)`	`(0.0, 0.0)`	The middle of the channel, in units of `ui.space`.
`width`	`f32`	`110.0`	Width of a box in pixels.
`height`	`f32`	`80.0`	Height of a box in pixels.
`gap`	`f32`	`12.0`	Space between neighbouring boxes in pixels.
`capacity`	`usize`	`6`	How many boxes the channel holds; sets its length.
`notes`	`bool`	`true`	Whether the step’s note is written under the queue.
`colors`	`CellColors`	`CellColors::themed(theme)`	Colours of the boxes in each state (visited, moved, found).
`frame_color`	`Color`	`theme.colors.muted`	Colour of the channel’s outline.
`marker_color`	`Color`	`theme.colors.highlight`	Colour of the `front` and `back` markers.
`value_style`	`TextStyle`	`value_style`	The font of the values in the boxes.
`small_style`	`TextStyle`	`theme.typography.caption`	The font of the markers and notes.
`enter`	`Option<FadeIn>`	`None`	Fade in at the start; `None` for none.
`exit`	`Option<FadeOut>`	`None`	Fade out before the end; `None` for none.

Feature cs · Source
