ReactionEquation

Cargo featurefeatures = ["chemistry"]

View Markdown Open in Claude Open in ChatGPT

Reaction holds a reaction’s formulas. atom_counts reads one, with parentheses (Ca(OH)2). balance finds the smallest whole coefficients. It returns None when the reaction cannot be balanced or has more than one balance. tally counts each element on both sides.

ReactionEquation needs the latex feature as well. It turns the equation without coefficients into the balanced one: the species slide apart and the coefficients fade in, starting at delay and taking run_time seconds. Typeset both with Reaction::typeset in the constructor. With tally a line under the equation counts the atoms of each element on both sides. It shows unequal_color until the balance and equal_color after it. Gallery scene: ReactionEquation (propane burning).

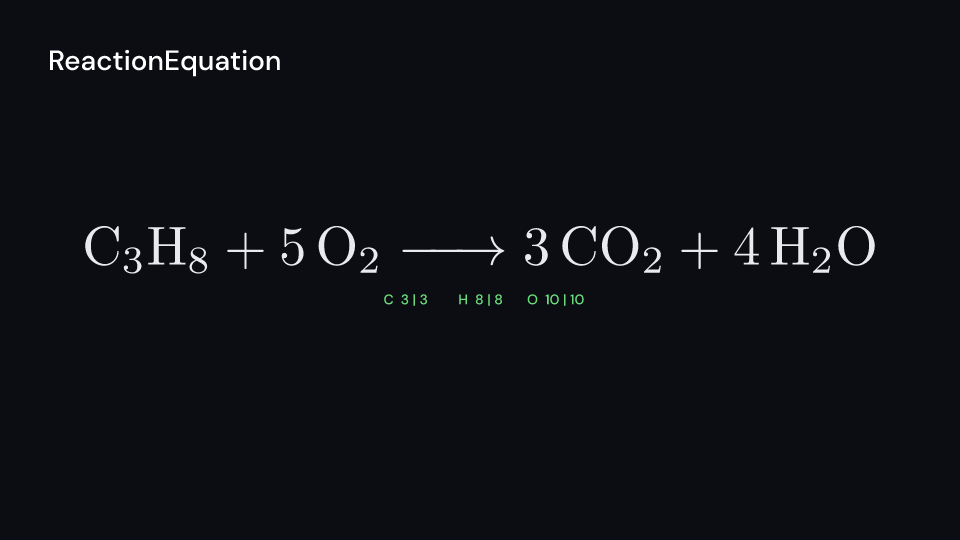

ReactionEquation demo, first frame — `ReactionEquation` 3.5 s

use fframes_kit::prelude::*;

let reaction = Reaction::new(&["C3H8", "O2"], &["CO2", "H2O"]);
assert_eq!(reaction.balance(), Some(vec![1, 5, 3, 4]));
assert_eq!(reaction.ce(Some(&[1, 5, 3, 4])), "C3H8 + 5O2 -> 3CO2 + 4H2O");

fn figure<'a>(
    ui: &mut Ui<'a, '_, '_>,
    reaction: &'a Reaction,
    unbalanced: &'a Formula,
    balanced: &'a Formula,
) -> Svgr<'a> {
    // unbalanced = reaction.typeset(&engine, false)?, balanced = reaction.typeset(&engine, true)?
    ui.show(ReactionEquation {
        reaction: Some(reaction),
        unbalanced: Some(unbalanced),
        balanced: Some(balanced),
        delay: 1.0,
        ..ui.defaults()
    })
}

API

Components are plain structs. Set the fields you need and fill the rest with ..ui.defaults(): the defaults below come from the current theme (theme. values are fields of Theme).

ReactionEquation

Field	Type	Default	Description
`reaction`	`Option<&Reaction>`	`None`	The `Reaction` the atom tally counts and balances; `None` for no tally.
`unbalanced`	`Option<&Formula>`	`None`	The typeset equation before balancing (from `Reaction::typeset` with `false`); `None` shows only `balanced`.
`balanced`	`Option<&Formula>`	`None`	The typeset equation after balancing (from `Reaction::typeset` with `true`); `None` shows only `unbalanced`.
`center`	`(f64, f64)`	`(0.0, 0.0)`	The middle of the equation, in units of `ui.space`.
`size`	`f32`	`110.0`	Size of the equation: pixels for a 10 pt font, the tally sits `0.9 * size` pixels under the middle.
`delay`	`f32`	`0.0`	Seconds after the container’s start before the equation turns into its balanced form.
`run_time`	`f32`	`1.2`	Seconds the turn into the balanced equation takes; the tally switches halfway through.
`tally`	`bool`	`true`	Writes a line counting each element’s atoms on both sides (`H 4 \| 4`); `false` for none.
`color`	`Color`	`theme.colors.text`	Colour of the equation.
`equal_color`	`Color`	`Color::hex("#69db7c")`	Colour of an element’s tally when both sides have the same count.
`unequal_color`	`Color`	`Color::hex("#ff6b6b")`	Colour of an element’s tally when the two sides differ.
`parts_enter`	`Option<FadeIn>`	`None`	Fade in of the tally; `None` for none.
`parts_exit`	`Option<FadeOut>`	`None`	Fade out of the tally before the end; `None` for none.

Feature chemistry · Source
