BondFormation

Two atoms with their valence electrons on a ring around each symbol, placed as in a Lewis diagram. From at over duration seconds they bond:

• BondType::Ionic: the left atom’s electrons arc over to the gaps of the right one. The empty ring fades and both atoms get their charge.
• BondType::Covalent: the atoms move together until their rings overlap. The electrons each one lacks pair up between them in shared_color, and a label counts the shared pairs.

valence, missing and bond_electrons give the numbers it uses. Gallery scenes: BondFormation (sodium chloride) and CovalentBond (oxygen).

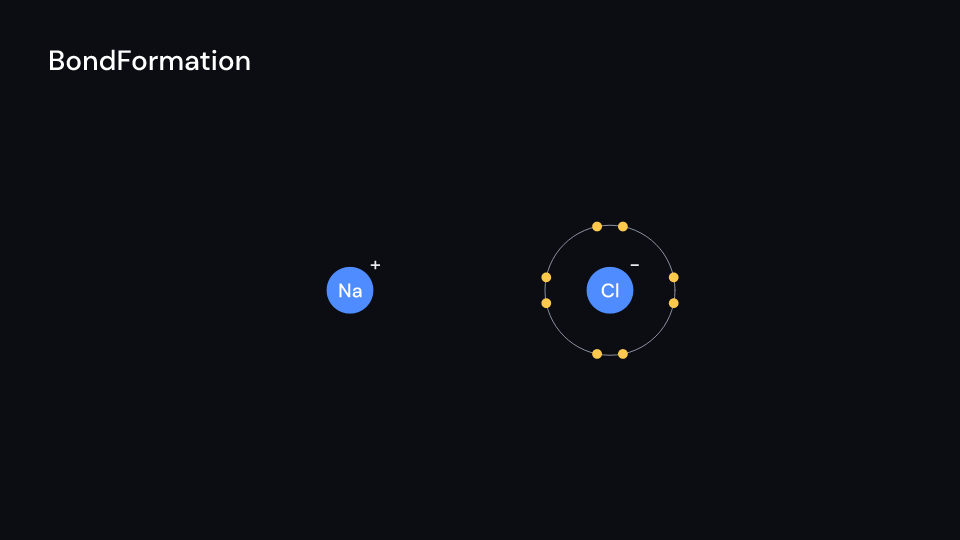

BondFormation 3.5 sPlayUnmuteCopy render command

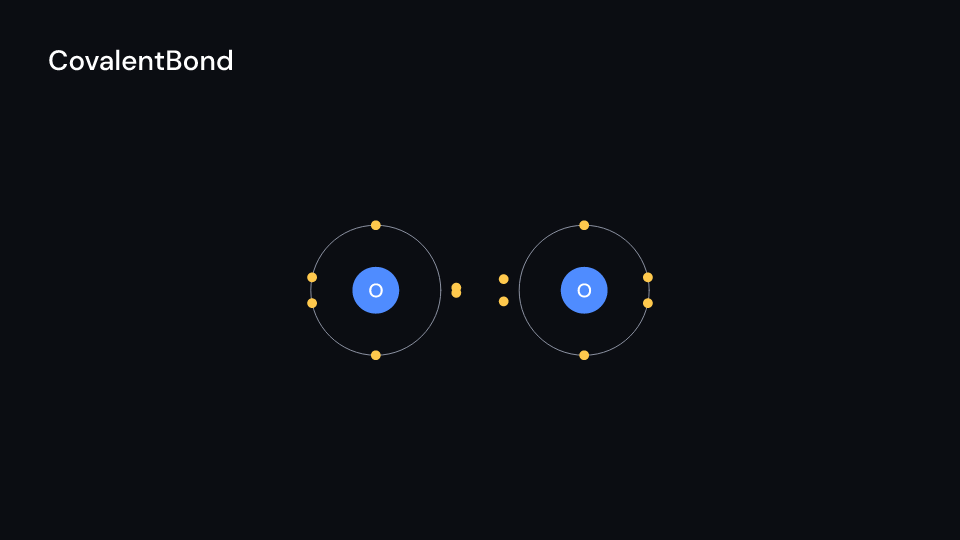

CovalentBond 3.5 sPlayUnmuteCopy render command

use fframes_kit::prelude::*;

fn figures<'a>(ui: &mut Ui<'a, '_, '_>) -> Svgr<'a> {
    let salt = ui.show(BondFormation {
        center: (0.0, 1.8),
        at: 1.0,
        ..ui.defaults()
    });
    let oxygen = ui.show(BondFormation {
        kind: BondType::Covalent,
        left: 8,
        right: 8,
        center: (0.0, -1.8),
        at: 1.0,
        ..ui.defaults()
    });
    svgr!(<g>{salt}{oxygen}</g>)
}

API

Components are plain structs. Set the fields you need and fill the rest with ..ui.defaults(): the defaults below come from the current theme (theme. values are fields of Theme).

BondFormation

Field	Type	Default	Description
kind	BondType	BondType::Ionic	Ionic (the left atom gives electrons away) or covalent (the atoms share pairs).
left	u32	11	Atomic number of the left atom; the electron donor when ionic.
right	u32	17	Atomic number of the right atom; the electron acceptor when ionic.
center	(f64, f64)	(0.0, 0.0)	The middle between the two atoms, in units of ui.space.
distance	f32	520.0	Pixels between the atom centres at the start; covalent atoms then move closer until their rings overlap.
radius	f32	130.0	Radius in pixels of each valence ring; the nucleus and electron sizes follow it.
at	f32	1.0	Seconds after the container’s start when the bonding begins.
duration	f32	1.5	Seconds the electron transfer (and, when covalent, the approach) takes.
labels	bool	true	Writes the ion charges (ionic) or the number of shared pairs (covalent) once bonded; false for none.
nucleus_color	Color	theme.colors.accent	Colour of the nucleus discs behind the symbols.
ring_color	Color	theme.colors.muted	Colour of the valence rings.
electron_color	Color	theme.colors.highlight	Colour of the electrons.
shared_color	Color	Color::hex("#69db7c")	Colour the shared electron pairs and the “shared pairs” label turn to when covalent.
text_color	Color	theme.colors.text	Colour of the ion charge labels.
stroke_width	f32	theme.stroke.thin	Outline width in pixels of the valence rings.
enter	Option<EnterAnim>	None	How the valence rings appear; None shows them from the start.
exit	Option<ExitAnim>	None	How the valence rings leave at the end of the container; None stays.
parts_enter	Option<FadeIn>	None	Fade in of the nuclei, electrons, symbols and labels; None for none.
parts_exit	Option<FadeOut>	None	Fade out of the nuclei, electrons, symbols and labels before the end; None for none.

Feature chemistry · Source
