Tag form (ui!)

ui! is svgr! markup that also takes component tags. Each tag is expanded to the struct form above, so the two forms draw the same frames. The struct form stays the main documented way. The tag form is shorter for markup that nests containers. Gallery scenes: TagsSquareToCircle, TagsFadeIn.

TagsSquareToCircle 4 sPlayUnmuteCopy render command

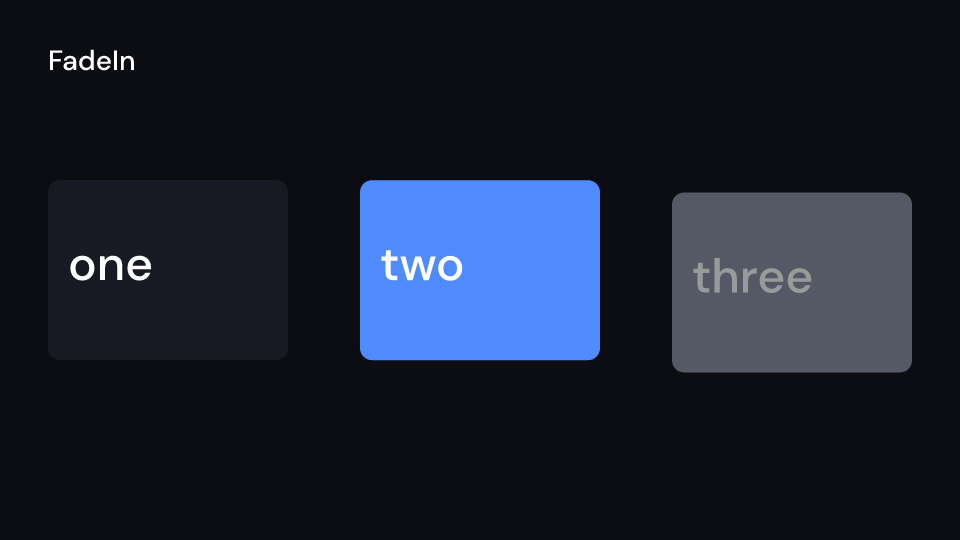

TagsFadeIn 2 sPlayUnmuteCopy render command

• A tag whose name starts with an uppercase letter is a component; everything else is passed to svgr! unchanged.

• Attributes are fields:

  • a quoted value or an {expr} goes through .into(): name="Ada", enter={fade};
  • a number or true/false alone in braces is written as is, so the field’s type decides it: x={60.0}, times={3};
  • a bare attribute is true: <Axes tips />.

  Quoted values suit text fields. A number field needs braces: cx={320.0}, not cx="320".

• Children fill the component’s children: Children field. They are a closure over the container’s ui, so tags inside them see its local time.

  • The closure runs every frame, so build what it draws inside it.
  • A value it uses must be Copy, a reference, or 'a. A Svgr made outside cannot be moved in.
  • Containers whose children are a Vec (LaggedStart, AnimationGroup) keep the struct form.

• Every component with theme defaults works as a tag, your own included. That is every component that implements Themed; the time containers do too.

• It needs a variable ui: Ui in scope.

use fframes_kit::prelude::*;

fn card<'a>(frame: Frame, ctx: &FFramesContext<'a, '_>, theme: &'a Theme) -> Svgr<'a> {
    let mut ui = Ui::new(frame, ctx, theme);
    let create: Option<EnterAnim> = Some(Create::default().into());
    ui!(
        <g>
            <LowerThird name="Ada" role="Mathematician" min_width={300.0} />
            <Sequence from={0.5} duration={Some(2.0)}>
                <Circle cx={960.0} cy={540.0} radius={120.0} enter={create} />
                <text x="96" y="140" fill="#fff">{format!("{:.1} s", ui.seconds())}</text>
            </Sequence>
        </g>
    )
}

A dashed attribute is an error that names the field (min-width is min_width):

Does not compile

use fframes_kit::prelude::*;

fn card<'a>(frame: Frame, ctx: &FFramesContext<'a, '_>, theme: &'a Theme) -> Svgr<'a> {
    let mut ui = Ui::new(frame, ctx, theme);
    ui!(<LowerThird name="Ada" min-width={300.0} />)
}

Without a ui in scope the compiler reports “cannot find value ui” at the first tag. Create one with let mut ui = Ui::new(frame, ctx, &self.theme):

Does not compile

use fframes_kit::prelude::*;

fn card<'a>(frame: Frame, ctx: &FFramesContext<'a, '_>, theme: &'a Theme) -> Svgr<'a> {
    ui!(<LowerThird name="Ada" />)
}
