Wave

Cargo featurefeatures = ["physics"]

View Markdown Open in Claude Open in ChatGPT

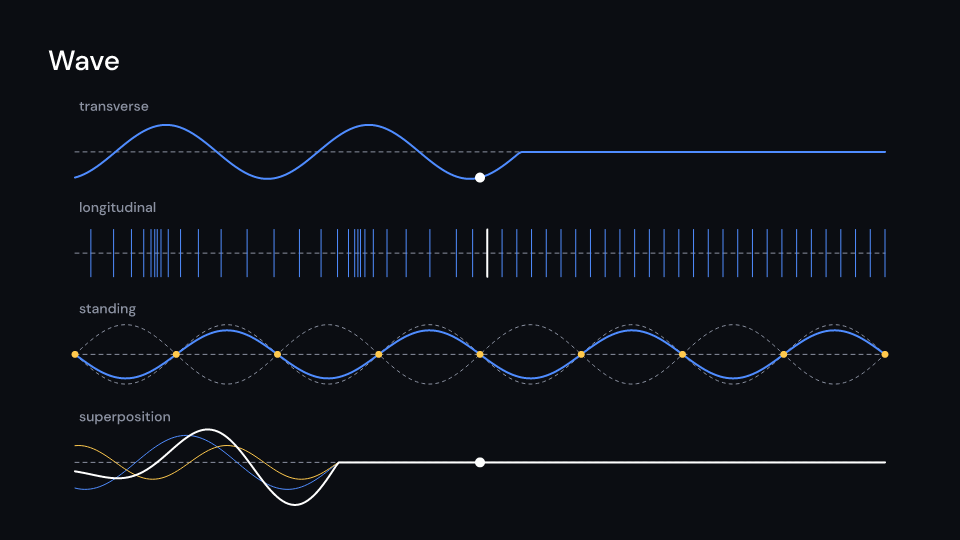

One figure for four kinds of wave, chosen by kind:

WaveKind::Transverse: the medium moves up and down;
WaveKind::Longitudinal: a row of particles that bunch and spread;
WaveKind::Standing: 2A sin(kx) cos(ωt) with its nodes and dashed envelope;
WaveKind::Superposition: the wave and a second one (second_wavelength, second_amplitude) drawn thin, with their sum drawn thick.

With front (the default) the medium starts at rest and the wave leaves the left end. marker picks out one point of the medium, which only moves in place. displacement(x, t), envelope(x) and nodes() give the numbers. Gallery scene: Wave (all four).

use fframes_kit::prelude::*;

fn figure<'a>(ui: &mut Ui<'a, '_, '_>) -> Svgr<'a> {
    ui.show(Wave {
        kind: WaveKind::Superposition,
        origin: (-6.0, 0.0),
        length: 12.0,
        amplitude: 0.5,
        wavelength: 3.0,
        second_wavelength: 2.2,
        speed: 3.0,
        marker: Some(6.0),
        ..ui.defaults()
    })
}

harmonic(n) turns a wave into the standing wave of a string’s nth harmonic, fixed at both ends (Manim-physics’ StandingWave): Wave { length: 9.0, ..ui.defaults() }.harmonic(3). Manim-physics’ LinearWave is Wave { front: false, .. } with speed = wavelength / period.

API

Components are plain structs. Set the fields you need and fill the rest with ..ui.defaults(): the defaults below come from the current theme (theme. values are fields of Theme).

Wave

Field	Type	Default	Description
`kind`	`WaveKind`	`WaveKind::Transverse`	What the wave shows: a transverse wave, a longitudinal one, a standing wave or two waves added.
`origin`	`(f64, f64)`	`(-6.0, 0.0)`	Left end of the medium, on its resting line, in units of `ui.space`.
`length`	`f64`	`12.0`	Length of the medium in meters.
`scale`	`f64`	`1.0`	Units of `ui.space` per meter.
`amplitude`	`f64`	`0.8`	Largest displacement in meters; a standing wave reaches twice this.
`wavelength`	`f64`	`4.0`	Meters between two crests.
`speed`	`f64`	`2.0`	Speed the wave travels right at in m/s.
`second_wavelength`	`f64`	`3.0`	Meters between two crests of the second wave of a `Superposition`.
`second_amplitude`	`f64`	`0.5`	Largest displacement in meters of the second wave of a `Superposition`.
`front`	`bool`	`true`	The medium is at rest at the start and the wave leaves the left end on the clock; off makes the whole length move from the start.
`marker`	`Option<f64>`	`None`	Meters from the left end of one point of the medium to highlight, which shows it oscillates in place; `None` for none.
`particles`	`usize`	`48`	Particles of a longitudinal wave.
`band`	`f64`	`1.2`	Meters tall, the lines that stand for the particles of a longitudinal wave.
`delay`	`f32`	`0.0`	Seconds after the container’s start before the wave begins.
`time_scale`	`f32`	`1.0`	Speed of the motion over local time; 2 runs twice as fast, 1 is real time.
`color`	`Color`	`theme.colors.accent`	Colour of the wave, or of the first wave of a `Superposition`.
`second_color`	`Color`	`theme.colors.highlight`	Colour of the second wave of a `Superposition` and of the nodes of a standing wave.
`marker_color`	`Color`	`theme.colors.title`	Colour of the highlighted point and of the summed wave of a `Superposition`.
`guide_color`	`Color`	`theme.colors.muted`	Colour of the dashed axis and of a standing wave’s envelope.
`stroke_width`	`f32`	`theme.stroke.regular`	Width of the wave line in pixels; the other lines use the theme’s thin width.
`enter`	`Option<EnterAnim>`	`None`	How the axis draws in; `None` shows it from the start.
`exit`	`Option<ExitAnim>`	`None`	How the axis leaves at the end of the container; `None` stays.
`parts_enter`	`Option<FadeIn>`	`None`	How the medium fades in; `None` for none.
`parts_exit`	`Option<FadeOut>`	`None`	How the medium fades out before the end; `None` for none.

Methods:

fn displacement(&self, x: f64, t: f64) -> f64: The displacement in meters of the medium x meters from the left end after t seconds: up for the transverse kinds, to the right for the longitudinal one.
fn envelope(&self, x: f64) -> f64: The largest displacement of a standing wave at x, 2A sin(kx).
fn harmonic(self, n: u32) -> Self: The standing wave of the nth harmonic of a string length meters long, fixed at both ends: Manim-physics’ StandingWave(n, length), n half wavelengths along it.
fn nodes(&self) -> Vec<f64>: The nodes of a standing wave, every half wavelength from the left end, in meters.

Feature physics · Source
