StatesOfMatter

Particles in a box going from from to to (MatterState::Solid, Liquid or Gas) over duration seconds after at:

• in a solid they vibrate on a lattice at the bottom;
• in a liquid they spread over the floor and wander past each other;
• in a gas they fly across the whole box and bounce off its walls.

Between two states the motions blend and the particles turn from cold_color to hot_color. The positions are a function of the time and seed only, not a stepped simulation, so any frame renders on its own and comes out the same everywhere. positions(seconds) gives them. With labels the state, or the change under way (“melting”, “boiling”, “condensing”, “freezing”), is written under the box. Gallery scene: StatesOfMatter (solid to gas).

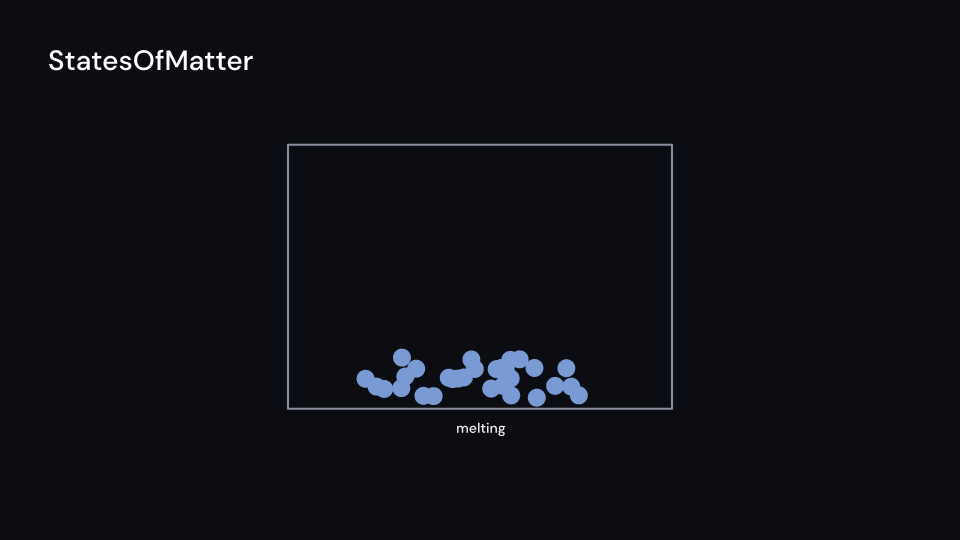

StatesOfMatter 7 sPlayUnmuteCopy render command

use fframes_kit::prelude::*;

fn figure<'a>(ui: &mut Ui<'a, '_, '_>) -> Svgr<'a> {
    ui.show(StatesOfMatter {
        seed: 3,
        from: MatterState::Gas,
        to: MatterState::Solid,
        at: 1.0,
        duration: 4.0,
        ..ui.defaults()
    })
}

API

Components are plain structs. Set the fields you need and fill the rest with ..ui.defaults(): the defaults below come from the current theme (theme. values are fields of Theme).

StatesOfMatter

Field	Type	Default	Description
seed	u64	1	Seed of the particles’ motion; the same seed gives the same picture on every frame and machine.
columns	usize	8	Particles per row of the starting lattice.
rows	usize	4	Rows of particles in the starting lattice.
from	MatterState	MatterState::Solid	State the particles start in.
to	MatterState	MatterState::Gas	State the particles end in.
at	f32	1.0	Seconds after the container’s start when the change begins.
duration	f32	4.0	Seconds the change from from to to takes.
center	(f64, f64)	(0.0, 0.0)	The middle of the box, in units of ui.space.
width	f32	760.0	Width of the box in pixels.
height	f32	520.0	Height of the box in pixels.
radius	f32	18.0	Radius of a particle in pixels.
labels	bool	true	Writes the state, or the change under way, under the box; false for none.
box_color	Color	theme.colors.muted	Colour of the box outline.
cold_color	Color	Color::hex("#4dabf7")	Colour of the particles in a solid; they blend to hot_color as the state warms.
hot_color	Color	Color::hex("#ff6b6b")	Colour of the particles in a gas.
text_color	Color	theme.colors.text	Colour of the state label.
stroke_width	f32	theme.stroke.regular	Width in pixels of the box outline.
enter	Option<EnterAnim>	None	How the box draws; None shows it from the start.
exit	Option<ExitAnim>	None	How the box leaves at the end of the container; None stays.
parts_enter	Option<FadeIn>	None	Fade in of the particles and the label; None for none.
parts_exit	Option<FadeOut>	None	Fade out of the particles and the label before the end; None for none.

Methods:

• fn level(&self, seconds: f32) -> f64: The particles’ level at seconds: 0 a solid, 1 a liquid, 2 a gas.
• fn positions(&self, seconds: f32) -> Vec<Vec2>: The particles’ centres at seconds, from the box’s middle in pixels (y down).

Feature chemistry · Source
