Transcription

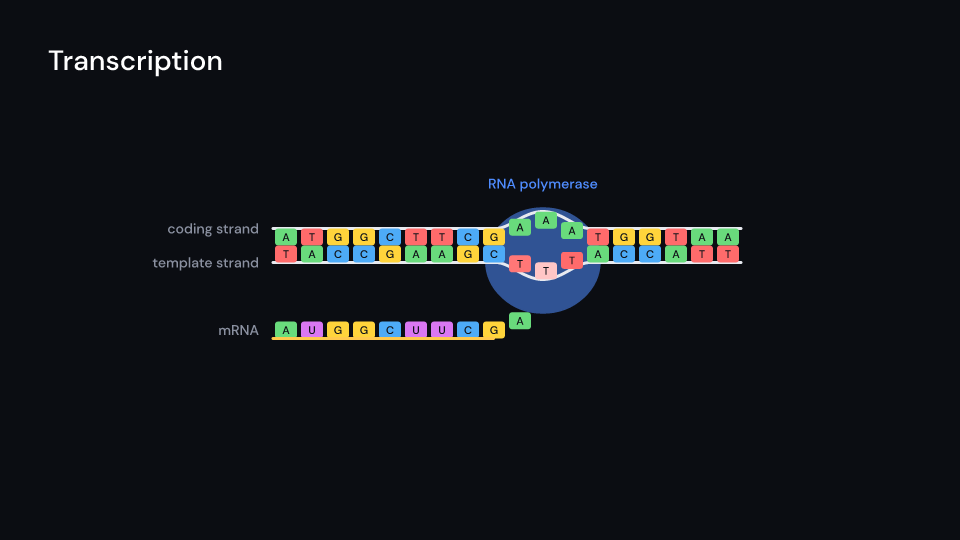

Transcription copies a gene into mRNA. The DNA of coding (its coding strand on top, the template strand under it) lies across the figure, spacing pixels per base. From delay RNA polymerase moves along it, one base every base_time seconds: the strands open into a bubble around it, the template base it reads lights up in lit_color, and the matching RNA base (U across from A) drops onto the growing mRNA below. The mRNA is the coding strand with U for T (transcribe(coding)). With labels the rows and the polymerase are named. Gallery scene: Transcription.

Transcription 8.5 sPlayUnmuteCopy render command

use fframes_kit::prelude::*;
use fframes_kit::kits::biology::transcribe;

assert_eq!(transcribe("ATGGCTTAA"), "AUGGCUUAA");

fn gene<'a>(ui: &mut Ui<'a, '_, '_>) -> Svgr<'a> {
    ui.show(Transcription {
        coding: "ATGAAACGCTAG".into(),
        base_time: 0.3,
        ..ui.defaults()
    })
}

API

Components are plain structs. Set the fields you need and fill the rest with ..ui.defaults(): the defaults below come from the current theme (theme. values are fields of Theme).

Transcription

Field	Type	Default	Description
coding	String	"ATGGCTTCGAAATGGTAA".into()	The coding strand, written 5’ to 3’ with the letters A, T, G, C; the template strand is its complement and the mRNA copies it with U for T.
delay	f32	0.0	Seconds after the container’s start before the polymerase begins to move.
base_time	f32	0.35	Seconds the polymerase spends on each base.
center	(f64, f64)	(0.0, 0.0)	The middle of the DNA, in units of ui.space.
spacing	f32	52.0	Pixels between neighbouring bases along the strand.
labels	bool	true	Names the strands, the mRNA and the polymerase when true.
bases	BaseColors	BaseColors::default()	Colour of each base letter.
strand_color	Color	theme.colors.text	Colour of the DNA backbones.
rna_color	Color	theme.colors.highlight	Colour of the mRNA backbone.
polymerase_color	Color	theme.colors.accent	Colour of the RNA polymerase and its label.
lit_color	Color	theme.colors.title	Colour the template base being read mixes toward.
base_style	TextStyle	base_style	The font of the base letters: family, size in pixels and weight.
label_style	TextStyle	theme.typography.caption	The font of the row names: family, size in pixels and weight.
label_color	Color	theme.colors.muted	Colour of the row names.
enter	Option<FadeIn>	None	Fade in at the start; None for none.
exit	Option<FadeOut>	None	Fade out before the end; None for none.

Feature biology · Source
