ListTrace

ListTrace holds the steps of a linked list, a stack or a queue. Each ListStep has the items in order, each with an id that stays with it from step to step (so the figures can move, add and remove items smoothly), the links when they are not simply each item to the next, the highlighted items, a found item, named pointers and a note. ListTrace::record(&values) starts a ListRecorder; every operation adds the steps that show it, and finish gives the trace:

• stack: push, pop (the item lights up, then leaves), peek;
• queue: enqueue, dequeue, peek_front;
• linked list: insert(index, value) and remove(index) walk a cur pointer to the node before, find(value) walks until it finds the value, and reverse walks prev, cur and next along while each link turns back, then puts the nodes in their new order;
• note replaces the note of the last step.

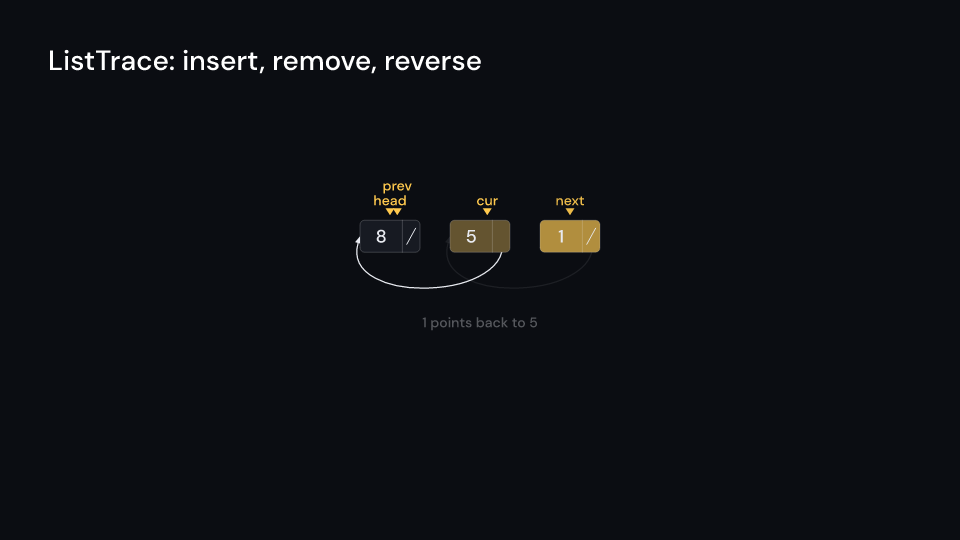

Gallery scene: ListTrace shows an insert, a removal and a reversal.

ListTrace 12.5 sPlayUnmuteCopy render command

use fframes_kit::prelude::*;

let list = ListTrace::record(&[3, 8, 1]).insert(2, 5).remove(0).reverse().finish();
assert_eq!(list.result(), ["1", "5", "8"]);

let stack = ListTrace::record(&[4]).push(7).pop().finish();
assert_eq!(stack.result(), ["4"]);

fn draw<'a>(ui: &mut Ui<'a, '_, '_>, trace: &'a ListTrace) -> Svgr<'a> {
    ui.show(LinkedList { trace: Some(trace), step_time: 0.7, ..ui.defaults() })
}
