Epicycles

A chain of turning circles whose end draws a closed path, as in the 3Blue1Brown Fourier series. fourier(path, samples, terms) resamples the path along its length and returns the largest terms first, centered on the path’s mean point (y up). Epicycles places them at center in units of ui.space, with scale units per unit of the path. turns (a tracker) is how far the series has turned. The trace is what the end drew in the last trace_length turns (1 keeps one full turn, the whole drawing). The circles and vectors draw with enter and leave with exit; the trace stays. Gallery scenes: Epicycles, and FourierWord: seven chains, one per letter, draw fframes from the glyph outlines of text_outline::outline.

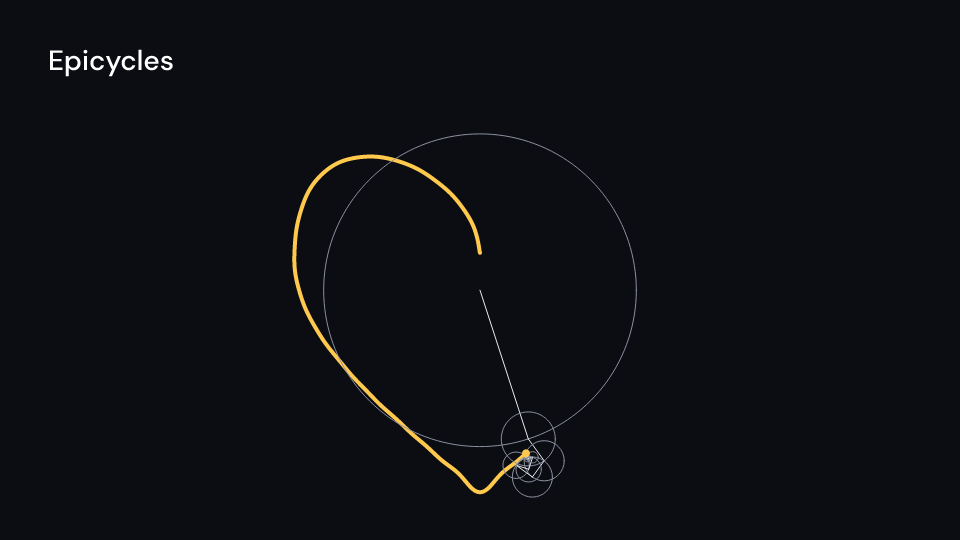

Epicycles 6 sPlayUnmuteCopy render command

FourierWord 6 sPlayUnmuteCopy render command

use fframes::animation::KeyFramesAnimation;
use fframes_kit::prelude::*;
use fframes_kit::kits::math::{Term, fourier};

fn figure<'a>(
    ui: &mut Ui<'a, '_, '_>,
    terms: &'a [Term],
    turns: &'a KeyFramesAnimation<f32>,
) -> Svgr<'a> {
    ui.show(Epicycles {
        terms,
        turns: turns.into(),
        ..ui.defaults()
    })
}

let heart = Heart { height: 5.0, ..Heart::default() };
let terms = fourier(&heart.path(), 513, 40);
assert_eq!(terms.len(), 40);
assert!(terms[0].amplitude() >= terms[1].amplitude());

API

Components are plain structs. Set the fields you need and fill the rest with ..ui.defaults(): the defaults below come from the current theme (theme. values are fields of Theme).

Epicycles

Field	Type	Default	Description
terms	&[Term]	&[]	The circles, largest first, from fourier; each has a frequency, an amplitude and a phase.
center	(f64, f64)	(0.0, 0.0)	Where the series’ origin sits, in units of ui.space (y up).
scale	f64	1.0	Units of ui.space for one unit of the series.
turns	ValueTracker	0.0.into()	How far the series has turned, in full turns of its slowest circle; a tracker to animate.
circles	bool	true	Draws the outline of each circle when true.
vectors	bool	true	Draws the arm of each circle, from its centre to its rim, when true.
circle_color	Color	theme.colors.muted	Colour of the circle outlines.
vector_color	Color	theme.colors.text	Colour of the arms.
trace_color	Color	theme.colors.highlight	Colour of the path the end of the chain draws and of the dot at its head.
stroke_width	f32	theme.stroke.thin	Line width in pixels of the circles and arms.
trace_width	f32	theme.stroke.thick	Line width in pixels of the trace.
trace_length	f64	1.0	How many turns of the end’s path stay drawn; 1.0 keeps one full turn, the whole drawing.
enter	Option<EnterAnim>	None	How the circles and arms appear; None shows them from the start.
exit	Option<ExitAnim>	None	How the circles and arms leave at the end of its container; None stays (the trace stays regardless).

Feature math · Source
